SR Portables

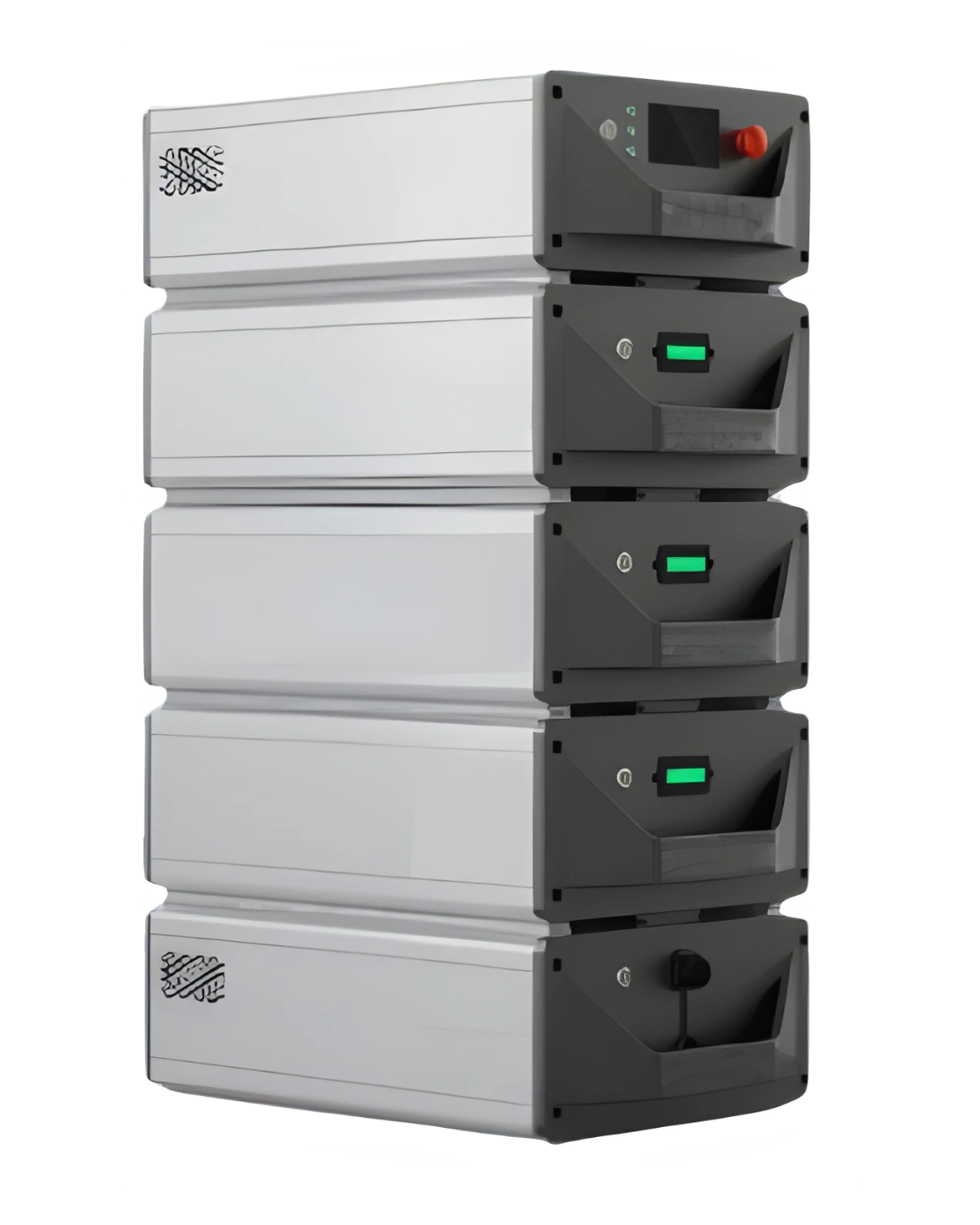

SR Portables Stacked EV charging station, 3.84 kWh LiFePO₄ Battery, 20kW Output Power, Wide Voltage 200–530V, Large 4.3” Display, GBT/CCS1/CCS2 Charging Gun (5m), Plug & Charge, IP-54, -10°C to 60°C

SR Portables Stacked EV charging station, 3.84 kWh LiFePO₄ Battery, 20kW Output Power, Wide Voltage 200–530V, Large 4.3” Display, GBT/CCS1/CCS2 Charging Gun (5m), Plug & Charge, IP-54, -10°C to 60°C

Contact Us for More Details
  • Modular Battery Capacity: Each module provides 3.84 kWh LiFePO4 energy, with a standard configuration of 11.52 kWh, expandable up to 19.2 kWh to meet varying energy needs.
  • High Output Power: Delivers 20 kW per charging gun, providing fast and reliable charging performance.
  • Wide Voltage Range: Supports DC output from 200 V to 530 V, with current ranging from 0 to 50 A for versatile applications.
  • Intuitive Display: Equipped with a 4.3‑inch screen for clear monitoring and easy operation.
  • Flexible Charging Options: Compatible with GBT, CCS1, and CCS2 charging guns, featuring a 5 m cable for convenient access.
  • Simple Operation: Plug and Charge mode ensures effortless start-up without complicated setup.
  • System Recharge: Supports AC single-phase input for efficient and flexible recharging.
  • Operating Conditions & Protection: Works in temperatures from -10℃ to 60℃ and features IP54 protection against dust and water.
  • Product Dimension & Weight: Module size of one: (LxHxW) 641 x 361 x 196 mm; external dimension (in total): (LxHxW) 641 x 361 x 970mm; Control Weight: 32.9kg, Battery weight: 39.6kg, Charger module weight:19.2kg
  • Buy with Confidence: At SR Portables, customer satisfaction is our number 1 priority, that’s why we provide you with 12 months worry-free warranty. If you have any question, please feel free to contact us, our support team is available between 8am to 8pm.
